The EK-160-G17E provides a complete mobile core drilling system designed to reduce setup time and improve jobsite efficiency. The trailer-mounted platform, onboard water tank, and hydraulic-assisted lift allow contractors to quickly drill both roadside and off-road locations with minimal equipment setup.

Support


KOR-IT provides replacement parts, technical assistance, and product support for both the drilling system and trailer components. Our team can also help match the correct core bits and accessories for your drilling applications.

PROFESSIONAL CONTRACTOR EQUIPMENT

EK-160-G17E with Variable Positioning System

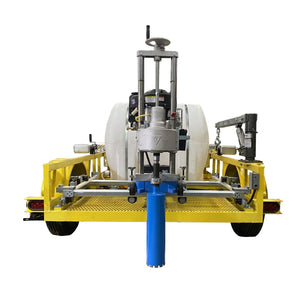

The KOR-IT EK-160-G17E is a trailer-mounted gasoline core drilling system designed for large diameter drilling and maximum jobsite mobility. With an onboard water tank and hydraulic-assisted lift, it allows contractors to quickly deploy the drill both on the trailer or in remote drilling locations.

Quick Specs

  • Max Bit Capacity: 16" diameter
  • Carriage Travel: 24"
  • Engine: 17.5 HP Briggs & Stratton gasoline motor
  • Fuel Capacity: 1 gallon
  • Charging System: 6 amp charging system
  • Trailer Bed Size: 60" x 96" steel bed
  • Trailer Dimensions: 132" x 82" outside dimensions
  • Water Tank: 225 gallon onboard tank
  • Tires: 195R15 trailer tires
  • Trailer Type: Full-size single axle steel construction trailer
  • Weight: Shipping weight varies

Perfect For

  • Large diameter concrete core drilling
  • Road and highway construction drilling

  • Utility and infrastructure installation

  • Bridge and pavement repair projects

  • Remote jobsite drilling
See It In Action

Product Description

The EK-160-G17E Trailer-Mounted Core Drill Can Be Used For High Production Core Drilling or Remote Core Drilling Away From The Trailer!


The EK-160-G17E comes standard with a 17.5HP Gasoline Motor, with Electric (Key) Start and a 16 amp charging system, yielding a variable 300 to 1300 RPM, for core drilling up to a 16″ bit diameter capacity. The core drill itself has a 24-inch vertical carriage travel.

This gasoline-powered trailer-mounted core drill machine includes a our premium Core Drill Positioning System, for easy core drill alignment.

Trailer Mounted Core Drill

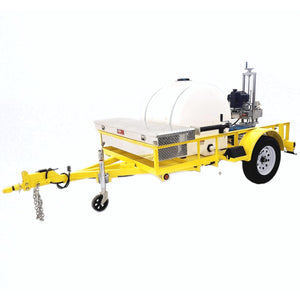

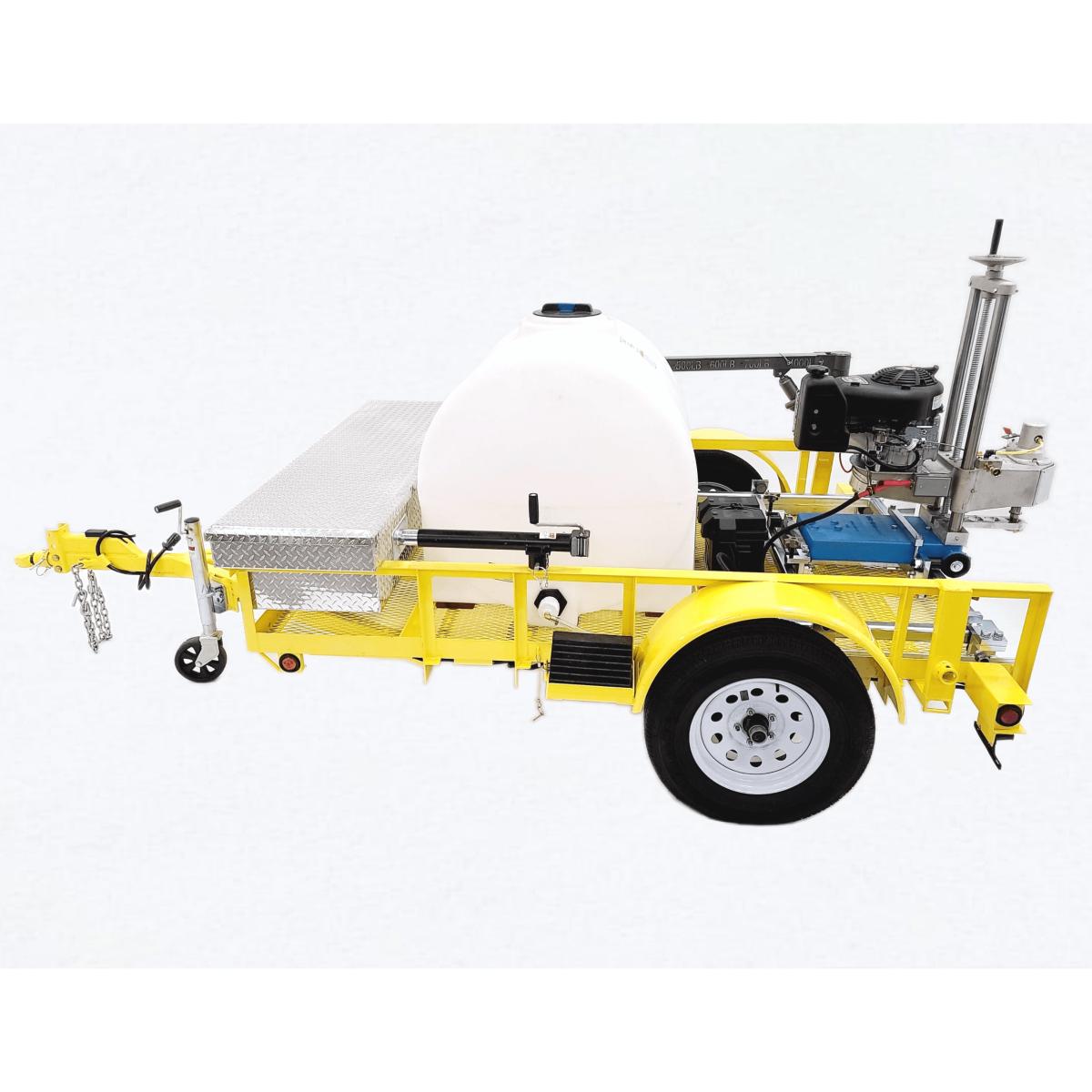

The is EK-160-G17E on a 82″wide full size, single axle, steel construction trailer equiped with a hydraulic assisted lift to remove core drill in the event you need to core drill in a remote location off the road. The trailer is 60″ x 96″ steel bed construction, and has an outside dimension of 132″ x 82″. It's 3450 lbs. rated, and we supply it with dual rear levelers for additional drilling stability.

Adjustable tongue jack and caster and electric brake system for safe towing, as well as running and brake lights pre-wired. The 4-wire electrical connection is provided to interface with towing vehicle. Additionally we provide the license plate holder, two 195R15 tires, a 200-gallon water system with 12 VDC water pump, which demands 2 GPM. We supply you with a 12 volt group 65 battery provides power for water pump and an electrical on/off switch.






Get The Job Done Faster and Reduce Job Costs with a Trailer Mounted Core Drill.


  • Quick Set-Up and Tear-Down
  • Drill Faster with Gasoline Motors
  • Drills 3-4 Times Faster Than Electric Drill Machines
  • Minimize Lane Closure and Traffic Control Requirements
  • Increased Bit Life with Very Stable Drilling Platform
  • Easy Removal From Vehicle When Not In Use

Specs:

  • 17.5 HP Gasoline B&S Motor w/ 1 Gallon Fuel Capacity
  • 6 amp Charging System
  • 16" Bit Capacity
  • 24" Carriage Travel
  • 60" x 96" Steel Bed, 132" x 82" Outside Dimension
  • 225 Gallon Water Tank
  • 195R15 Tires
  • Shipping Will Determine Weight

Benefits:

  • Quick Set Up And Tear Down
  • Drills 3-4 Times Faster Than Electric Drill Machines
  • Minimize Lane Closure/Traffic Control Requirements
  • Increased Bit Life With Very Stable Drilling Platform
  • Hydraulic-assisted Lift To Remove Core Drill For Remote Drilling
  • Adjustable Tongue Jack And Caster
  • Electric Brake System For Safe Towing
  • Pre-wired Running And Brake Lights Pre-wired
  • License Plate Holder

Gain Field Independence With A Trailer Mounted Core Drilling System

  • Stand-Alone System, No Additional Power Supplies Required!
  • 200-Gallon Polyethylene Horizontal Water Tank System
  • Stable Drilling Platform Provided by Full-Size Trailer

EK-160-17E Standard Package Includes:

  • Gasoline powered core drill system includes:

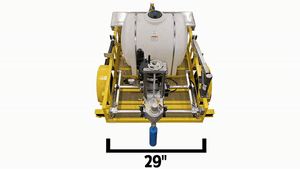

    • Core Drill Positioning System – For Easy Core Drill Alignment
    • 17.5HP  Gasoline Motor, with Electric (Key) Start
    • Variable RPM: 300 to 1300 Bit RPM
    • 16 amp charging system
    • Up to a 16″ bit diameter capacity
    • 24-inch carriage travel
  • 82″-wide full size, single axle, steel construction trailer
    • Hydraulic -assisted lift to remove core drill for remote drilling
    • 60″ x 96″ steel bed, 132″ x 82″ outside dimension
    • 3450 lbs. rated, dual rear levelers for drilling stability
    • Adjustable tongue jack and caster
    • Electric brake system for safe towing
    • Running and brake lights pre-wired
    • 4-wire electrical connection to interface with towing vehicle
    • License plate holder
    • 195R15 tires
  • 200-gallon water system
    • 12 VDC water pump
    • Demand 2 GPM
    • 12 volt group 65 battery provides power for water pump
    • Electrical on/off switch
