Why Contractors Buy This

The EK-160-G8 offers a complete mobile drilling system with the added flexibility of a Variable Positioning System for precise drill placement. Contractors benefit from the trailer-mounted platform and onboard water supply that allow for faster setup and efficient drilling on demanding jobsites.

Support

KOR-IT provides replacement parts, technical assistance, and product support to keep your drilling equipment operating reliably. Our team can also help match the correct core bits and accessories for your drilling applications.

PROFESSIONAL CONTRACTOR EQUIPMENT

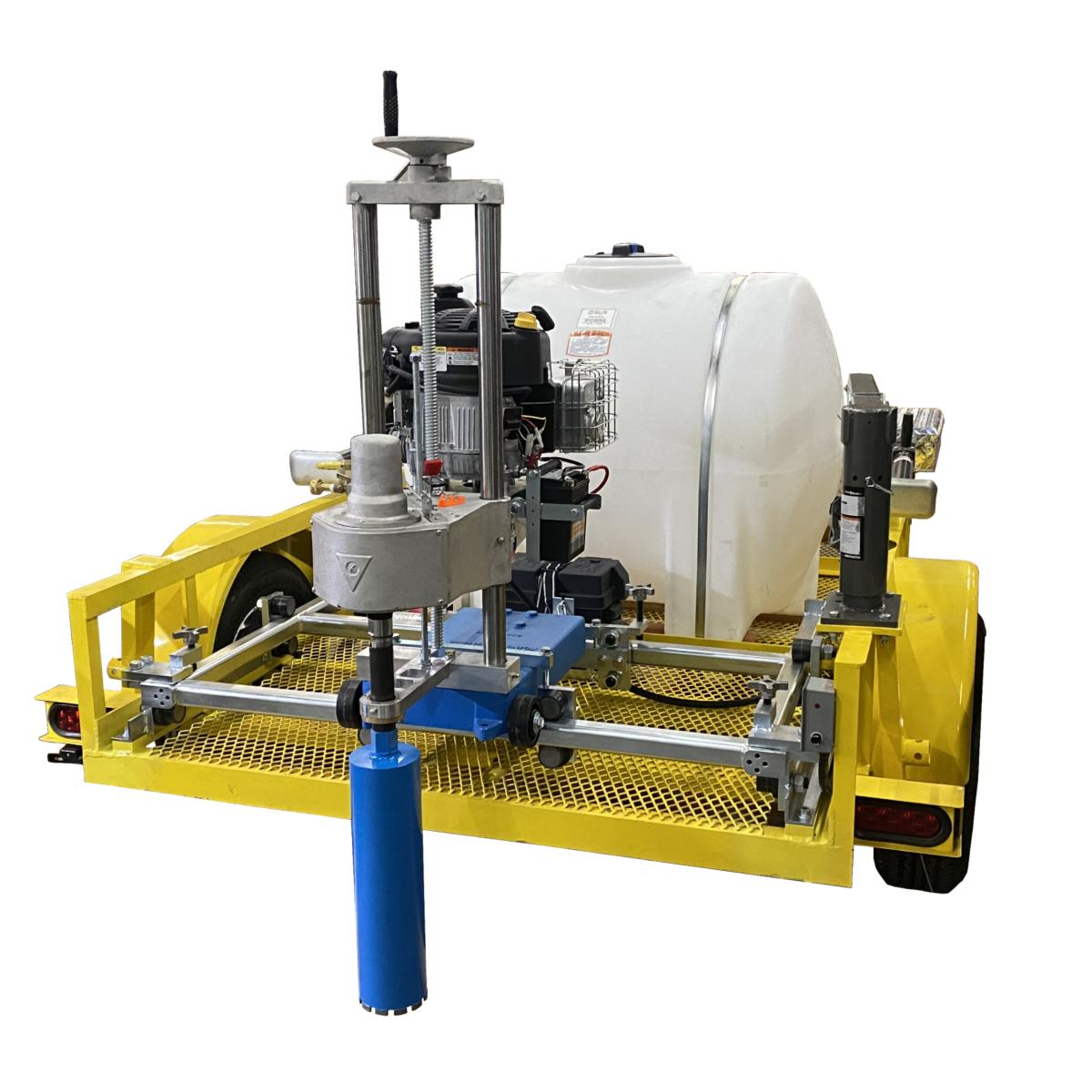

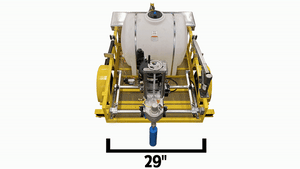

EK-160-G8 with Variable Positioning System

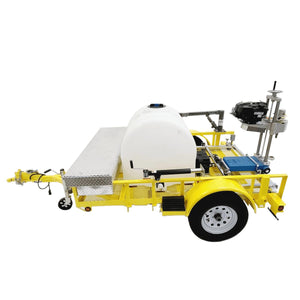

The KOR-IT EK-160-G8 is a trailer-mounted gasoline core drilling system designed for efficient drilling and easy jobsite mobility. Equipped with a Variable Positioning System and onboard water supply, it allows contractors to quickly position and deploy the drill for a wide range of coring applications.

Quick Specs

Max Bit Capacity: 8" diameter
Carriage Travel: 24"
Engine: 8.75 HP Briggs & Stratton gasoline motor
Fuel Capacity: 0.3 gallon
Charging System: 6 amp charging system
Trailer Bed Size: 60" x 96" steel bed
Trailer Dimensions: 132" x 82" outside dimensions
Water Tank: 225 gallon onboard tank
Tires: 195R15 trailer tires
Weight: Shipping weight varies

Perfect For

Concrete core drilling
Road and highway drilling projects
Utility and conduit installation
Infrastructure drilling
Remote drilling locations

See It In Action

Product Description

The KOR-Mobile Systems Can Be Used For Trailer-Mounted High Production Core Drilling or Remote Drilling Away From The Trailer!

Get The Job Done Faster and Reduce Job Costs with a Trailer Mounted Core Drill.

Specs:

8.75 HP Gasoline B&S Motor w/ .3 Gallon Fuel Capacity
6 amp Charging System
8" Bit Capacity
24" Carriage Travel
60" x 96" Steel Bed, 132" x 82" Outside Dimension
225 Gallon Water Tank
195R15 Tires
Shipping Will Determine Weight

Benefits:

Quick Set Up And Tear Down
Drills 3-4 Times Faster Than Electric Drill Machines
Minimize Lane Closure/Traffic Control Requirements
Increased Bit Life With Very Stable Drilling Platform
Hydraulic-assisted Lift To Remove Core Drill For Remote Drilling
Adjustable Tongue Jack And Caster
Electric Brake System For Safe Towing
Pre-wired Running And Brake Lights Pre-wired
License Plate Holder

Gain Field Independence With A Trailer Mounted Core Drilling System

Stand-Alone System, No Additional Power Supplies Required!
200-Gallon Polyethylene Horizontal Water Tank System
Stable Drilling Platform Provided by Full-Size Trailer

EK-160-G8 Standard Package Includes:

Gasoline powered core drill system includes:
- Core Drill Positioning System – For Easy Core Drill Alignment
- 8.75HP Gasoline Motor, with Electric (Key) Start
- Variable RPM: 300 to 1300 Bit RPM
- 16 amp charging system
- Up to a 8″ bit diameter capacity
- 24-inch carriage travel
82″-wide full size, single axle, steel construction trailer
- Hydraulic -assisted lift to remove core drill for remote drilling
- 60″ x 96″ steel bed, 132″ x 82″ outside dimension
- 3450 lbs. rated, dual rear levelers for drilling stability
- Adjustable tongue jack and caster
- Electric brake system for safe towing
- Running and brake lights pre-wired
- 4-wire electrical connection to interface with towing vehicle
- License plate holder
- 195R15 tires
200-gallon water system
- 12 VDC water pump
- Demand 2 GPM
- 12 volt group 65 battery provides power for water pump
- Electrical on/off switch
