EK-700-HR48 (14"-48" Bit Diameter)
EK-700-HR48 (14"-48" Bit Diameter) EK-700-HR48 (14"-48" Bit Diameter)
Request pricing, shipping, and setup details below.

What Happens Next

  1. We review your machine request.
  2. We confirm shipping and delivery options.
  3. We help verify the right setup for your job.
  4. We send your quote quickly.
Fast quote turnaround • Accurate freight pricing • Pickup available

Why Contractors Buy This


The EK-700-HR48 allows contractors to perform extremely large diameter core drilling directly from a skid steer or loader platform. Its heavy-duty drilling assembly and bucket-mounted system provide mobility and stability for demanding infrastructure drilling projects.

Support


KOR-IT provides replacement parts, technical support, and assistance with hydraulic setup and drilling accessories. Our team can also help match the correct core bits and system configuration for your drilling equipment.

PROFESSIONAL CONTRACTOR EQUIPMENT

EK-700-HR48 (14"-48" Bit Diameter)

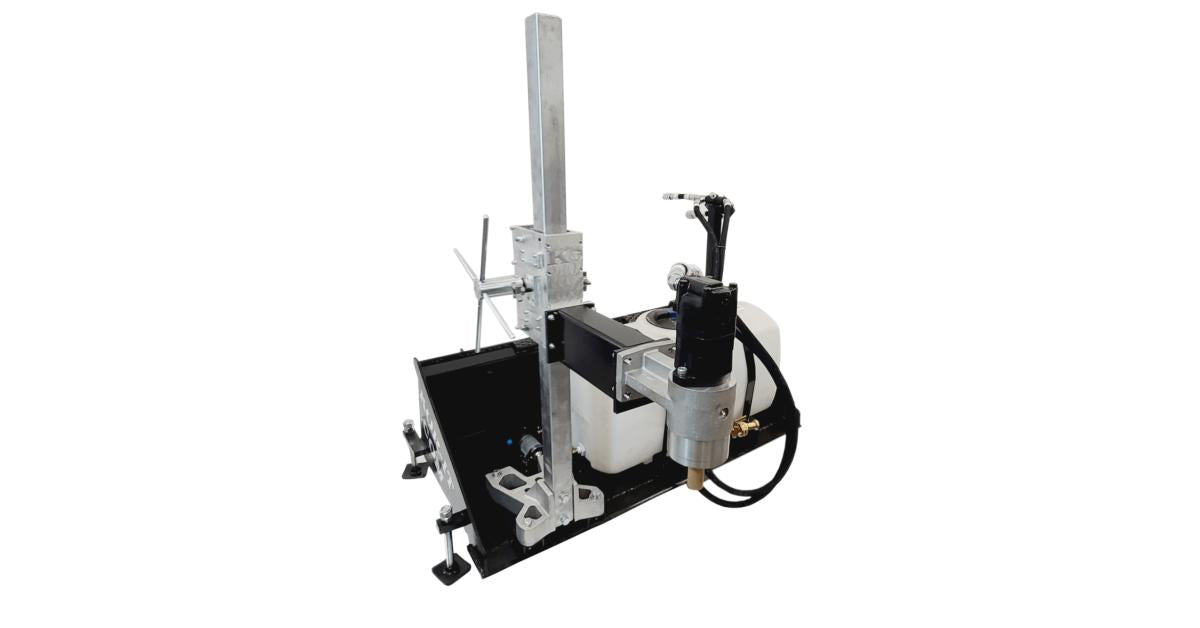

The KOR-IT EK-700-HR48 is a skid steer mounted hydraulic core drill designed for extremely large diameter concrete coring. Its bucket-mounted system allows contractors to position the drill quickly while delivering the power and stability needed for demanding infrastructure drilling.

Quick Specs

  • Bit Capacity: 14" – 48" diameter
  • Drive System: Hydraulic motor
  • Flow Control Valve: 0–10 GPM standard issue
  • Hydraulic Requirements: Minimum 10 GPM @ 3000 PSI
  • Mounting System: 60" skid steer bucket mount
  • Water Tank: 50 gallon onboard tank
  • Water Pump: 12VDC pump
  • Operation: Two-person operation
  • Weight: 883 lbs

Perfect For

  • Large diameter concrete core drilling
  • Infrastructure and civil construction drilling
  • Utility and manhole installation
  • Bridge and roadway drilling projects
  • Industrial coring applications

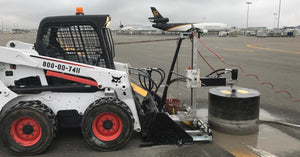

See It In Action

Product Description

K-700 BUCKET MOUNTED CORE DRILL MACHINE, HYDRAULIC MOTOR, 14-48-INCH BIT DIAMETER CAPACITY, 24-INCH DRILLING DEPTH, 60 GALLON WATER TANK, 12VDC WATER PUMP.

Save Time and Increase Your Profits – Perfect For Civil Contractors

K-700 Skid Steer Mounted Hydraulic Core Drill

Independence In The Field With Skid-Steer Hydraulic Powered Bucket Mounted Drilling System



    Specs:

    • Hydraulic Motor
    • Standard Issue Flow Control Valve 0-10 GPM
    • 14" to 48" Bit Capacity
    • 60" Skid Steer Bucket
    • 50 Gallon Water Tank
    • 12vdc Water Pump
    • Hydraulic Requirements Minimum Of 10 GPM @ 3000 PSI
    • Must Be Operated By 2 People
    • 883 lbs

    Benefits:

    • Heavy Duty, Precision Ground Column And Precision Machined Roller Carriage Assembly
    • 24" & 36" Spacer Blocks Available Upon Request
    • Easy Removal Bucket System From Skid-Steer For Maximum Flexibility
    • Modified Skid Steer Or Loader Bucket To Hook-Up To Your Equipment
    • K-201-HR12 Hydraulic Drill


    Skid steer systems vary from manufacturers. Therefore, hoses and harnesses from your skid steer system to our flow control are not included. A two-wire electrical harness will be needed to power the Shurflo Water Pump. Harness not included.
