The EK-701-HR48 allows contractors to perform extremely large diameter core drilling directly from a skid steer platform. Its Variable Positioning System and heavy-duty drilling assembly provide precise drill placement and stable performance for demanding infrastructure drilling projects.

Support

KOR-IT provides replacement parts, technical support, and assistance with hydraulic setup and drilling accessories. Our team can also help match the correct core bits and system configuration for your drilling equipment.

PROFESSIONAL CONTRACTOR EQUIPMENT

EK-701-HR48 with Positioning System (14"-48" Bit Diameter Max)


The KOR-IT EK-701-HR48 is a skid steer mounted hydraulic core drill designed for extremely large diameter concrete coring. Its Variable Positioning System and bucket-mounted design allow contractors to precisely position the drill while handling demanding large-hole drilling applications.

Quick Specs

  • Bit Capacity: 14" – 48" diameter
  • Drive System: Hydraulic motor
  • Flow Control Valve: 0–10 GPM standard issue
  • Hydraulic Requirements: Minimum 10 GPM @ 3000 PSI
  • Mounting System: 60" skid steer bucket mount
  • Water Tank: 50 gallon onboard tank
  • Water Pump: 12VDC pump
  • Positioning System: Side-to-side and fore/aft drill positioning
  • Operation: Two-person operation
  • Weight: 981 lbs

Perfect For

  • Large diameter concrete core drilling
  • Infrastructure and civil construction drilling
  • Manhole and utility installation
  • Bridge and roadway drilling projects
  • Industrial coring applications
See It In Action

Product Description

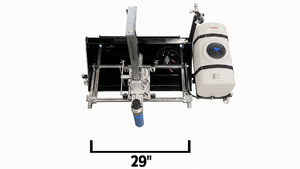

EK701-HR48 BUCKET MOUNTED CORE DRILL MACHINE INCLUDES VARIABLE POSITIONING SYSTEM, ALLOWS DRILL HEAD MOVEMENT APPROXIMATELY 29-INCH SIDE TO SIDE AND 11 INCHES FORE AND AFT, HYDRAULIC MOTOR, 12-INCH BIT DIAMETER CAPACITY, 24-INCH DRILLING DEPTH, 50 GALLON WATER TANK, 12VDC WATER PUMP.

Save Time and Increase Your Profits – Perfect For Civil Contractors

K-701 Skid Steer Mounted Hydraulic Core Drill

Independence In The Field With Skid-Steer Hydraulic Powered Bucket Mounted Drilling System


    Specs:

    • Hydraulic Motor
    • Standard Issue Flow Control Valve 0-10 GPM
    • 14" to 48" Bit Capacity
    • 60" Skid Steer Bucket
    • 50 Gallon Water Tank
    • 12vdc Water Pump
    • Hydraulic Requirements Minimum Of 10 GPM @ 3000 PSI
    • Must Be Operated By 2 People
    • 981 lbs

    Benefits:

    • Variable Positioning System (Allows Core Drill Travel Left To Right And Back And Forth)
    • 24" & 36" Spacer Blocks Available Upon Request
    • Heavy Duty, Precision Ground Column And Precision Machined Roller Carriage Assembly
    • Easy Removal Bucket System From Skid-Steer For Maximum Flexibility
    • Modified Skid Steer Or Loader Bucket To Hook-Up To Your Equipment
    • K-201-HR12 Hydraulic Drill


    Skid steer systems vary from manufacturers. Therefore, hoses and harnesses from your skid steer system to our flow control are not included. A two-wire electrical harness will be needed to power the Shurflo Water Pump. Harness not included.
