EK-160-G616 (Same as 160-G17E)
EK-160-G616 (Same as 160-G17E) EK-160-G616 (Same as 160-G17E) EK-160-G616 (Same as 160-G17E) EK-160-G616 (Same as 160-G17E)
Request pricing, shipping, and setup details below.

What Happens Next

  1. We review your machine request.
  2. We confirm shipping and delivery options.
  3. We help verify the right setup for your job.
  4. We send your quote quickly.
Fast quote turnaround • Accurate freight pricing • Pickup available

Why Contractors Buy This

The EK-160-G616 combines a powerful gasoline core drill with a fully equipped trailer system for maximum jobsite efficiency. Contractors benefit from the hydraulic lift, onboard water supply, and mobile drilling platform that allow fast setup and drilling both on and off the trailer.

Support


KOR-IT provides replacement parts, technical assistance, and support for both the drilling system and trailer components. Our team can also help match the correct core bits, augers, and accessories for your drilling applications.

PROFESSIONAL CONTRACTOR EQUIPMENT

EK-160-G616 (Same as 160-G17E)

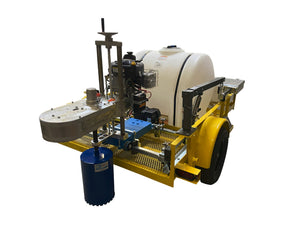

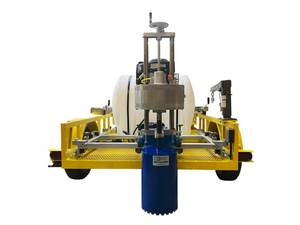

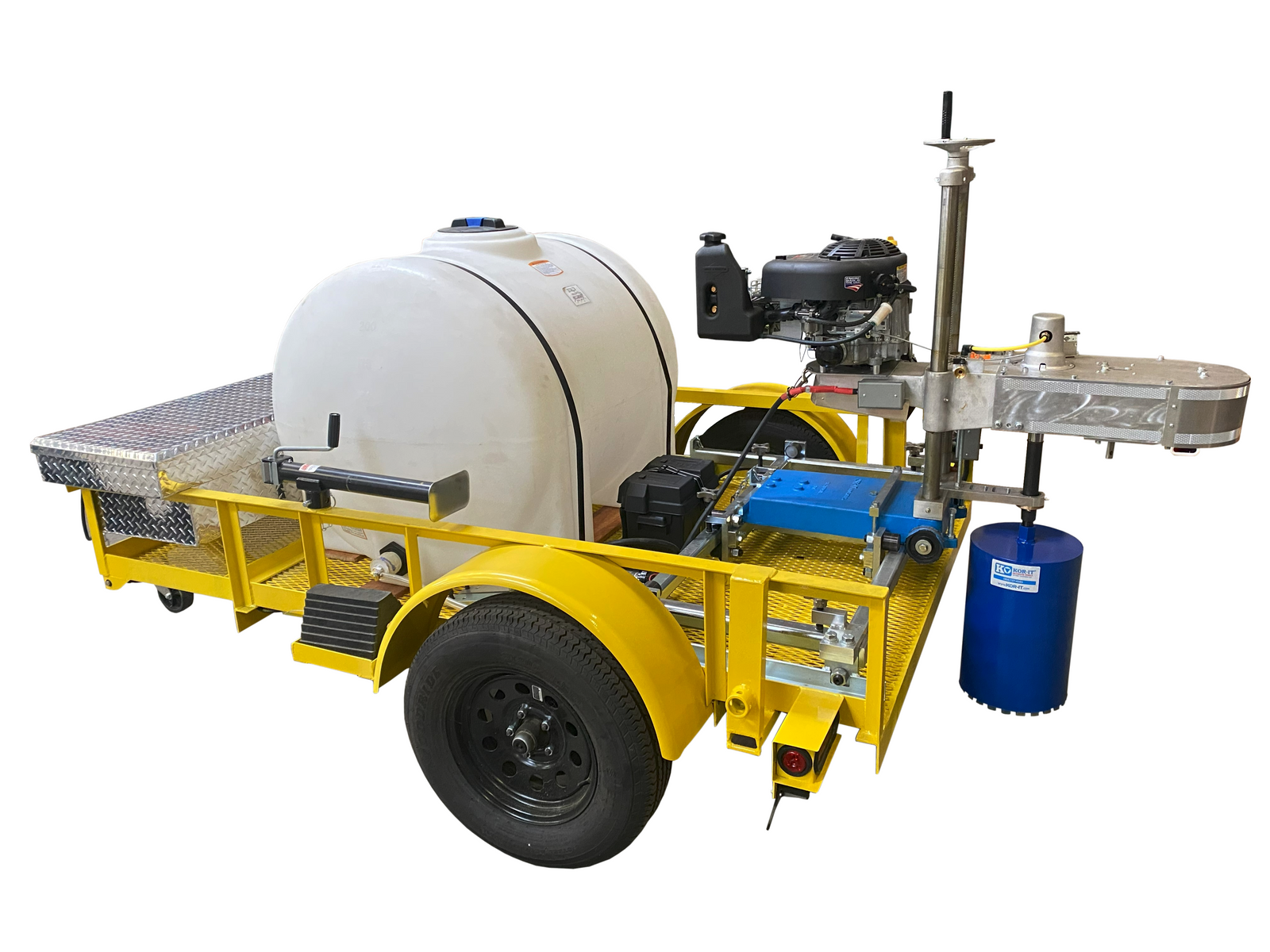

The KOR-IT EK-160-G616 is a trailer-mounted gasoline core drilling system designed for large diameter drilling and jobsite mobility. Equipped with a hydraulic-assisted lift and onboard water supply, it allows contractors to quickly deploy the drill both on the trailer or at remote drilling locations.

Quick Specs

  • Max Bit Capacity: 16" diameter
  • Auger Capacity: 8" auger
  • Carriage Travel: 24"
  • Engine: 17.5 HP Briggs & Stratton gasoline motor
  • Fuel Capacity: 1 gallon
  • Charging System: 6 amp charging system
  • Trailer Bed Size: 60" x 96" steel bed
  • Trailer Dimensions: 132" x 82" outside dimensions
  • Water Tank: 225 gallon onboard tank
  • Tires: 195R15 trailer tires
  • Trailer Type: Single axle steel construction trailer
  • Weight: Shipping weight varies

Perfect For

  • Large diameter concrete core drilling
  • Road and highway drilling projects
  • Utility and infrastructure installation
  • Auger drilling applications
  • Remote drilling locations
See It In Action

Product Description

The EK-160-G616 Can Be Used For Trailer-Mounted High Production Concrete and Asphalt Core Drilling or Remote Core Drilling Away From The Trailer!

The EK-160-G616 comes standard with a 17.5HP Gasoline Motor, with Electric (Key) Start and a 16 amp charging system, yielding a variable 300 to 1300 RPM, for core drilling up to a 16″ bit diameter capacity. The core drill itself has a 24-inch vertical carriage travel.

This gasoline-powered trailer-mounted core drill machine includes a premium Core Drill Positioning System, for easy core drill alignment.

EK-160-G616 (Same as 160-G17E)


Trailer Mounted Core Drill

The is EK-160-G616 on a 82″wide full size, single axle, steel construction trailer equipped with a hydraulic assisted lift to remove the core drill in the event you need to core drill in a remote location off the road. The trailer is 60″ x 96″ steel bed construction and has an outside dimension of 132″ x 82″. It's 3450 lbs. rated, and we supply it with dual rear levelers for additional drilling stability.

Adjustable tongue jack and caster and electric brake system for safe towing, as well as running and brake lights pre-wired. The 4-wire electrical connection is provided to interface with the towing vehicle. Additionally, we provide the license plate holder, two 195R15 tires, and a 200-gallon water system with a 12 VDC water pump, which demands 2 GPM. We supply you with a 12 volt group 65 battery provides power for water pump and an electrical on/off switch.

Core Drill Machine and Auger Combination

Note: this "EK-160-G616" model comes with the upgraded 8" auger capability, which is an additional spindle within the core drill machine itself. (do not attempt to use both the core drill bit and auger at the same time)

Core Drill Machine and Auger Combination





Get The Job Done Faster and Reduce Job Costs with a Trailer Mounted Core Drill.

  • Quick Set-Up and Tear-Down
  • Drill Faster with Gasoline Motors
  • Drills 3-4 Times Faster Than Electric Drill Machines
  • Minimize Lane Closure and Traffic Control Requirements
  • Increased Bit Life with Very Stable Drilling Platform
  • Easy Removal From Vehicle When Not In Use


Gain Field Independence With A Trailer Mounted Core Drilling System

Specs:

  • 17.5 HP Gasoline B&S Motor w/ 1 Gallon Fuel Capacity
  • 6 amp Charging System
  • 16" Bit Capacity
  • 24" Carriage Travel
  • 60" x 96" Steel Bed, 132" x 82" Outside Dimension
  • 225 Gallon Water Tank
  • 8" Auger Capability
  • 195R15 Tires
  • Shipping Will Determine Weight

Benefits:

  • Quick Set Up And Tear Down
  • Drills 3-4 Times Faster Than Electric Drill Machines
  • Minimize Lane Closure/Traffic Control Requirements
  • Increased Bit Life With Very Stable Drilling Platform
  • Hydraulic-assisted Lift To Remove Core Drill For Remote Drilling
  • Adjustable Tongue Jack And Caster
  • Electric Brake System For Safe Towing
  • Pre-wired Running And Brake Lights Pre-wired
  • License Plate Holder

EK-160-G616 Core Drill Machine Standard Package Includes:

  • Gasoline powered core drill system includes:
    • Core Drill Positioning System – For Easy Core Drill Alignment
    • 17.5HP  Gasoline Motor, with Electric (Key) Start
    • Variable RPM: 300 to 1300 Bit RPM
    • 16 amp charging system
    • Up to a 16″ bit diameter capacity
    • 24-inch carriage travel
  • 82″-wide full size, single axle, steel construction trailer
    • Hydraulic -assisted lift to remove core drill for remote drilling
    • 60″ x 96″ steel bed, 132″ x 82″ outside dimension
    • 3450 lbs. rated, dual rear levelers for drilling stability
    • Adjustable tongue jack and caster
    • Electric brake system for safe towing
    • Running and brake lights pre-wired
    • 4-wire electrical connection to interface with towing vehicle
    • License plate holder
    • 195R15 tires
  • 200-gallon water system
    • 12 VDC water pump
    • Demand 2 GPM
    • 12 volt group 65 battery provides power for water pump
    • Electrical on/off switch
  • 8" auger capability
