EK-1716-G17 - 17.5 HP Gasoline Motor
EK-1716-G17 - 17.5 HP Gasoline Motor EK-1716-G17 - 17.5 HP Gasoline Motor EK-1716-G17 - 17.5 HP Gasoline Motor EK-1716-G17 - 17.5 HP Gasoline Motor
Request pricing, shipping, and setup details below.

What Happens Next

  1. We review your machine request.
  2. We confirm shipping and delivery options.
  3. We help verify the right setup for your job.
  4. We send your quote quickly.
Fast quote turnaround • Accurate freight pricing • Pickup available

Why Contractors Buy This


The EK-1716-G17 allows contractors to perform powerful core drilling directly from a service vehicle, reducing setup time and improving jobsite efficiency. Its multi-jointed positioning arm provides exceptional flexibility for drilling in a wide range of positions.

Support


KOR-IT provides replacement parts, technical assistance, and product support to keep your drilling equipment operating reliably. Our team can also help match the correct core bits and accessories for your drilling applications.

PROFESSIONAL CONTRACTOR EQUIPMENT

EK-1716-G17 - 17.5 HP Gasoline Motor

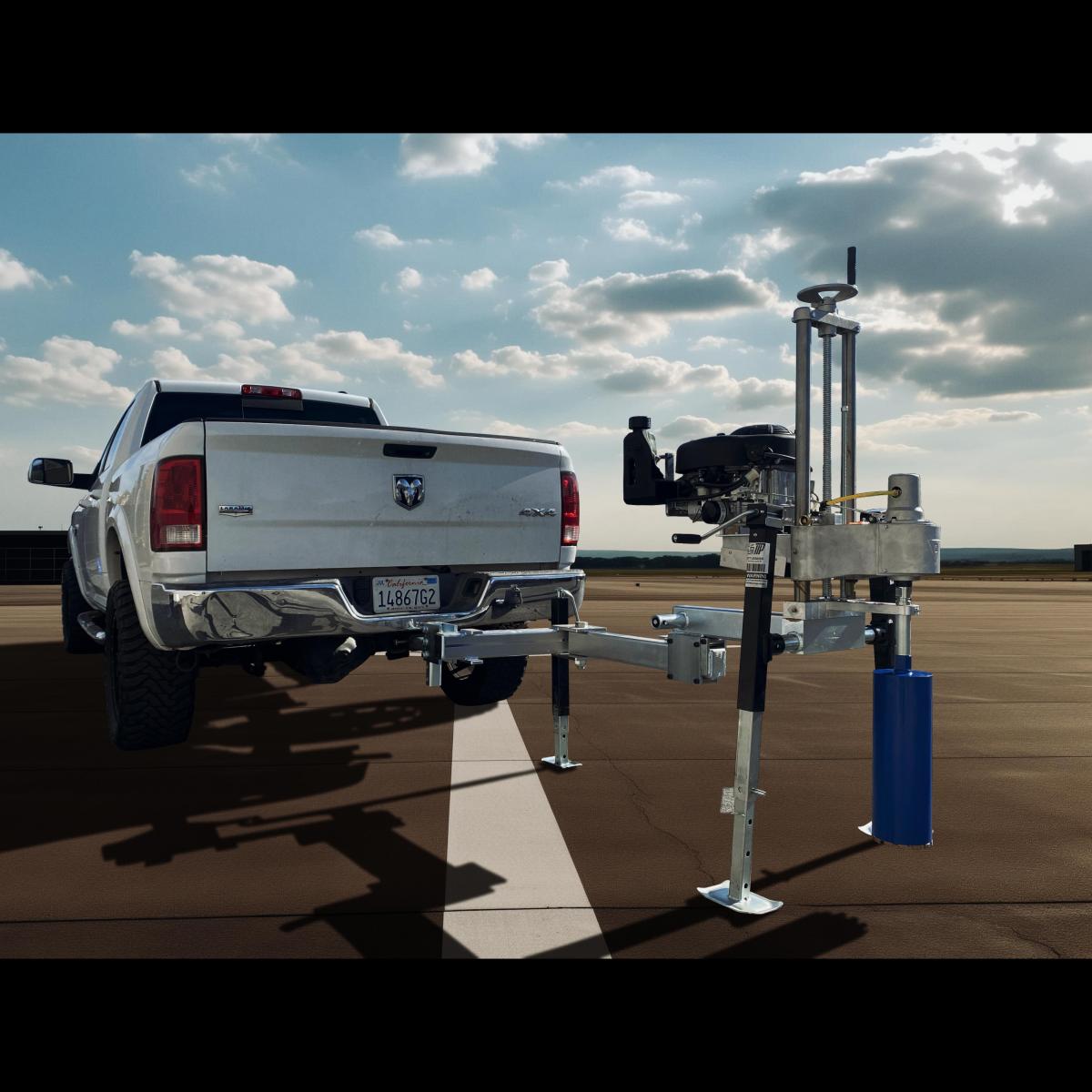

The KOR-IT EK-1716-G17 is a receiver hitch mounted gasoline core drill designed for fast and efficient concrete drilling directly from a service vehicle. Its multi-jointed positioning arm allows contractors to drill in a wide range of positions while minimizing setup time and traffic disruption.

Quick Specs

  • Max Bit Capacity: 16" diameter
  • Reach: 77" extension from receiver hitch to core bit centerline
  • Engine: 17.5 HP Briggs & Stratton gasoline motor
  • Fuel Capacity: 1 gallon
  • Mounting System: Receiver hitch vehicle mount
  • Positioning System: Multi-jointed arm with 180° swing range
  • Weight: 537 lbs

Perfect For

  • Sign and bollard installation or replacement
  • Airport lighting installation
  • Road and bridge construction
  • Materials testing drilling
  • Utility installation and pot-holing
See It In Action

Product Description

K-1700 HITCH MOUNTED CORE DRILL
FAST DRILLING & CONSISTENT RESULTS – SAVES TIME & INCREASES PROFITS


K-1700 Hitch Mounted Core Drill


K-1700 Hitch Mounted Core Drills are perfect For:

  • Sign and Bollard Installation or Replacement
  • Airport Lighting Installation
  • Road and Bridge Construction
  • Materials Testing
  • Utility Installation – “Pot-Holing”

Get the job done faster and reduce job costs

Specs:

  • 77" Extension From Receiver Hitch To Core Bit Center Line
  • 16" Bit Capacity
  • 17.5 hp B&S Motor
  • 1 Gallon Fuel Tank
  • 537 lbs

Benefits:

  • Positioning Arm Swings 180 Degrees In A Semi-Circle
  • Muli-jointed Arm Allows Drilling At Almost Any Position Within The Semi-Circle
  • Quick Set Up And Tear Down
  • Drills 3-4 Times Faster Than Electric Drill Machines
  • Minimize Lane Closure/Traffic Control Requirements
  • Increased Bit Life With Very Stable Drilling Platform
  • Storage Position Against Vehicle Bumper For Easy Transport
  • Easy Removal From Vehicle When Not In Use
  • Capable Of Handling Large And Small Hole Drilling
  • Flexible Position Receiver Mount Bracket
  • Drill Caddy For One-Person Mounting And Storage
  • Can Be Mounted To The Front Or Back Of Truck

Independence in the field
  • Heavy-duty, Stand-alone gasoline-powered system – No additional power supplies needed
  • Mounts to standard 2-inch receiver hitch of a pickup, van or other vehicle
  • Easy one person vehicle mounting or removal using its own drill caddy
